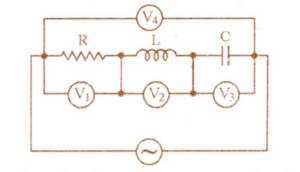

An ideal resistor $R$, ideal inductor $L$, ideal capacitor $C$, and AC voltmeters $V_1$, $V_2$, $V_3$, and $V_4$ are connected to an AC source as shown. At resonance,

Question

Reading in $V_3$ = reading in $V_1$

Reading in $V_1$ = reading in $V_2$

Reading in $V_2$ = reading in $V_4$

Reading in $V_2$ = reading in $V_3$
