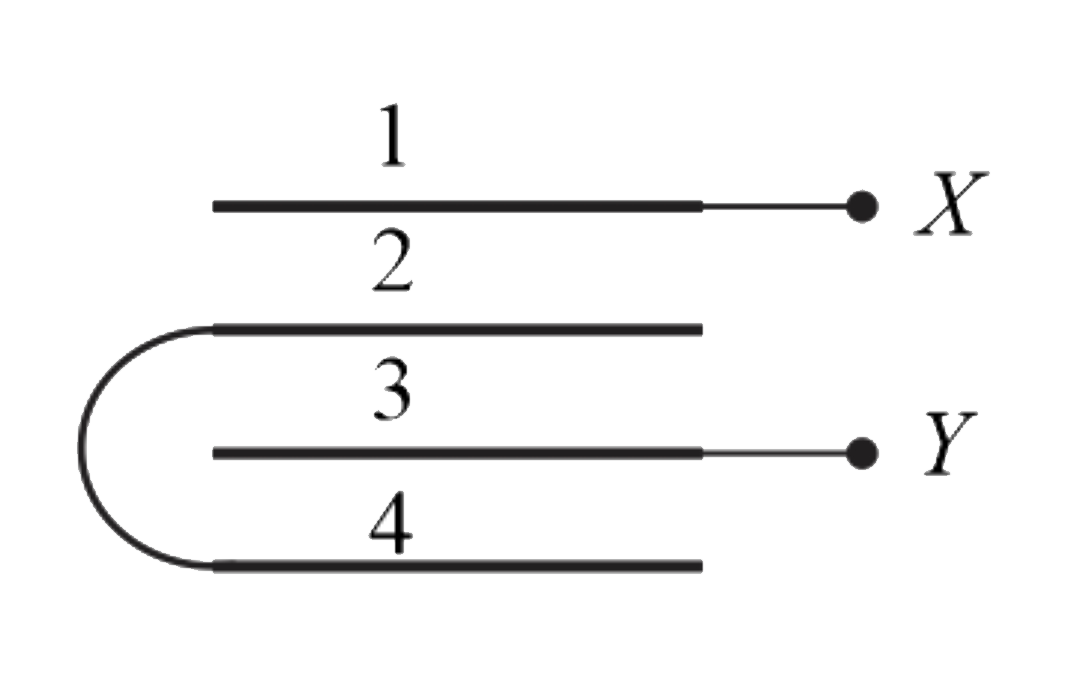

Four metal plates are arranged as shown. Find the capacitance between X and Y, where $A$ is the area of each plate and $d$ is the distance between the plates.

Question

$\frac{3 \varepsilon_0 A}{2d}$

$\frac{2 \varepsilon_0 A}{d}$

$\frac{2 \varepsilon_0 A}{3d}$

$\frac{3 \varepsilon_0 A}{d}$
