Question

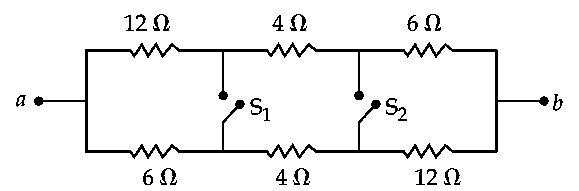

In the given figure switches S1 and S2 are in open condition. The resistance across ab when the switches S1 and S2 are closed is _____________ $\Omega$.
Correct Answer
10
In the given figure switches S1 and S2 are in open condition. The resistance across ab when the switches S1 and S2 are closed is _____________ $\Omega$.
