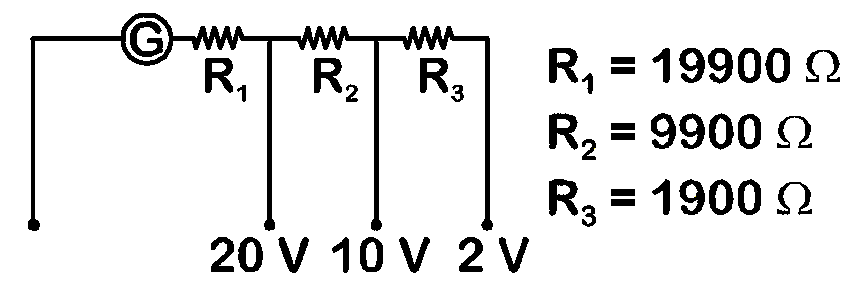

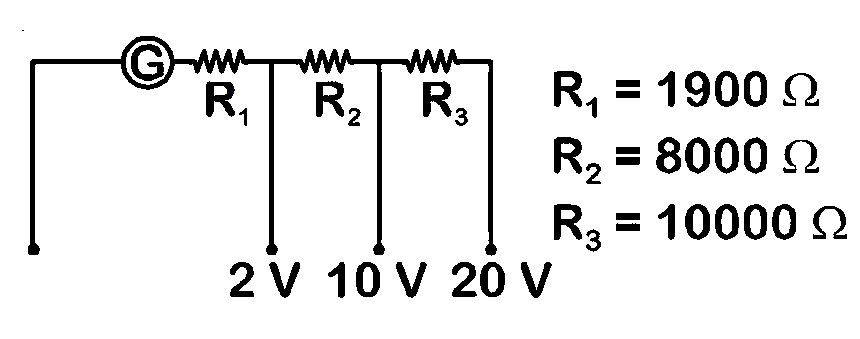

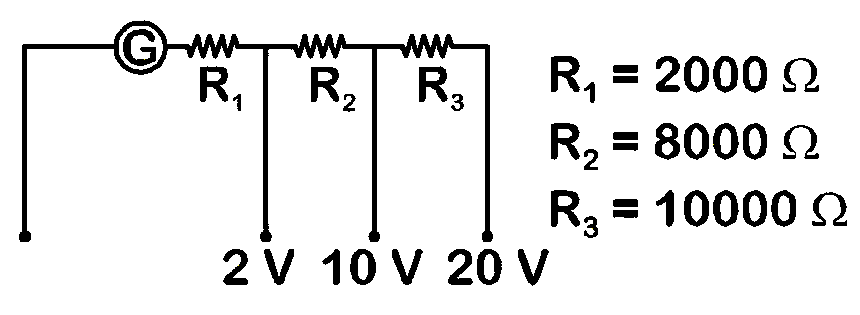

A galvanometer of resistance 100 $\Omega $ has 50 divisions on its scale and has sensitivitv of 20 $\mu $A/division. It is to be converted to a voltmeter with three ranges of 0-2V, 0-10 V and 0-20 V. The appropriate circuit to do so is
